TV Series

£21.00

Share this product

Description

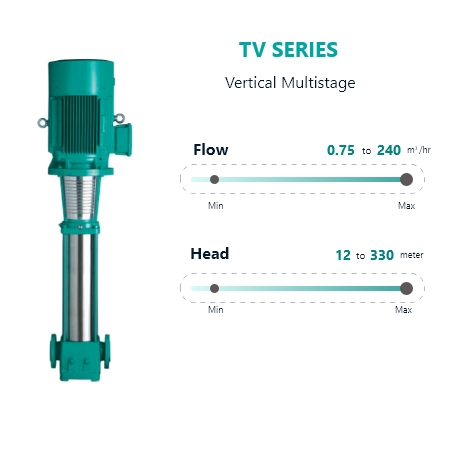

Tormac TV series Vertical Multistage Pumps are highly reliable and technologically advanced multipurpose pump capable of satisfying the need of a wide variety of users. The in-line design enables the pump to be installed in vertical position and does not interrupt the horizontal pipe line system. All the wet parts like impellers, diffusers, shaft of these pumps are constructed by corrosion resistance AISI stainless steel and designed to deliver the best possible hydraulic efficiency. The integrated and most modern quality assurance systems used at every stage of the production and flawless workmanship ensure sustained and consist operation. These pumps are equipped with replacement mechanical seal.

Technical Data

Series TV
Power range (kW) 0.37 to 45kw (0.5 – 60hp)
Speed in rpm 2900
Power versions A.C. single phase – 230v – 50Hz

permanent split capacitor (psc)

Incorporated protector. A.C.

three phase 380 – 415 v 50Hz

direct online (DOL)

Flow range m3/hr. 1, 2, 3, 4, 5, 8, 16, 32, 44, 66 & 90
Type of duty S1 (Continuous)
Delivery size in inches 1”x1”, 1¼” x 1¼”, 1½” x 1½”, 2” x 2”, 2½ x 2½”, 3” x 3”, 4” x 4” Available in round/oval/pje
Head range 330m / 1082ft
Rotation Counter Clock Wise Viewed From Driving End
Degree of protection IP55 (Optional 44 & 54)
Class of insulation “B” / “F”
Suction lift 7m / 23ft
Maximum liquid temperature -15 to 120˚C (5˚F to 248˚F)
Maximum ambient temperature 40˚C / 104˚F

Applications

Performance Curves

tv-50 centri-mutistage

Download Brochure
